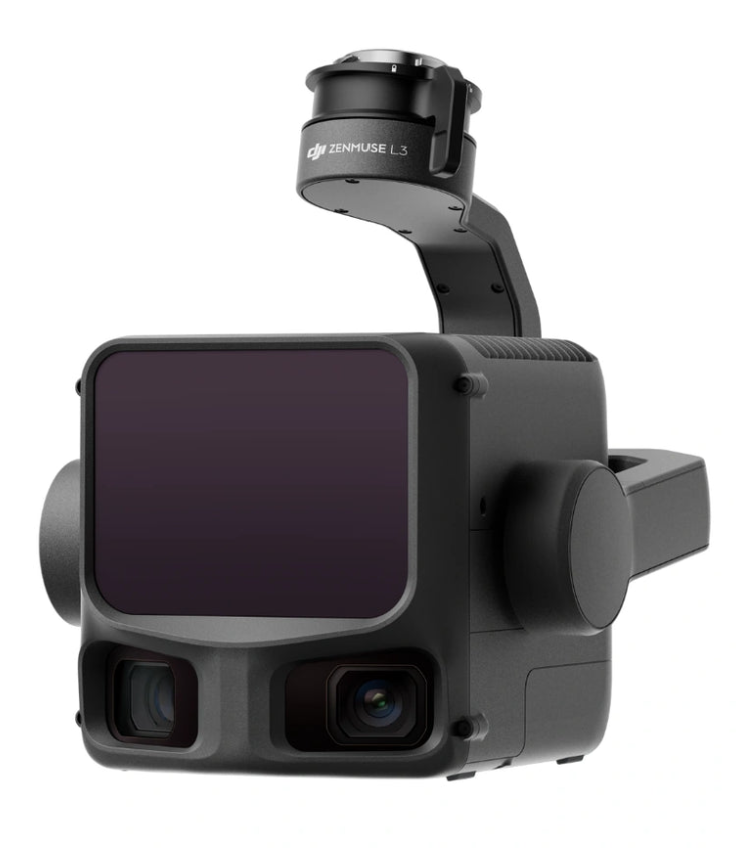

DJI Zenmuse L3 Lidar Sensor

Long-Range LiDAR and Dual 100 MP Camera Payload for Survey-Grade Mapping

The DJI Zenmuse L3 LiDAR Camera is a flagship long-range LiDAR and imaging payload engineered for precision aerial mapping, topographic modeling, and high-detail inspection.

• Long-range LiDAR system: 950 m @ 10% (100 kHz) and 700 m @ 10% (350 kHz).
• Survey-grade accuracy: delivers 2–4 cm precision for mapping applications.
• High-efficiency mapping: covers up to 10 km² per flight or 100 km² per day
• Adjustable point-rate control: 100 kHz – 2 MHz to balance density and coverage.
• Configurable returns: 16 (100 / 350 kHz), 8 (1000 kHz), 4 (2000 kHz).
• Dual 100 MP Micro 4/3 cameras: generate orthophotos and colorized point clouds.
• Real-time point-cloud preview: measure points, lines, and areas in DJI Pilot 2.
• Compact low-power design: 1.6 kg payload draws only 64 W typical power.
• Rugged environmental build: IP54 rated for –20 °C to +50 °C operation.
• Streamlined workflow: integrates directly with DJI Terra and Modify.
• DJI Care Enterprise Plus: 1-Year coverage activated upon first use.
