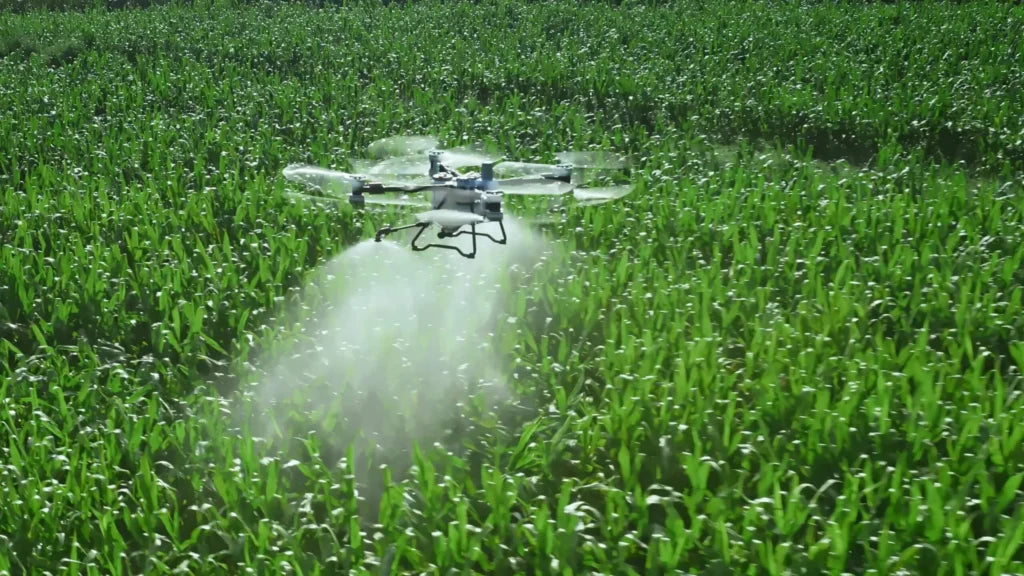

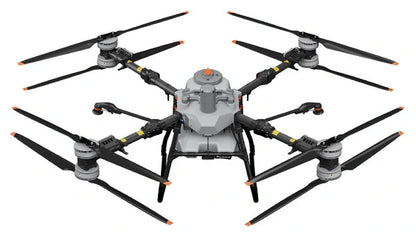

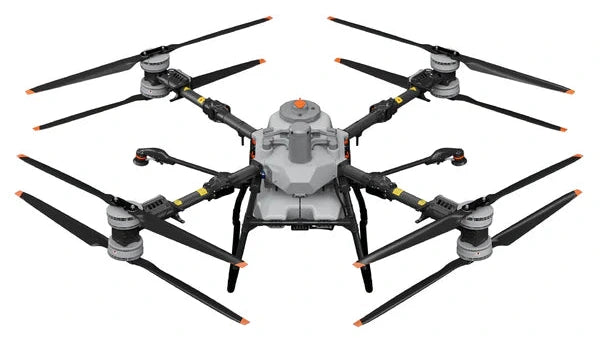

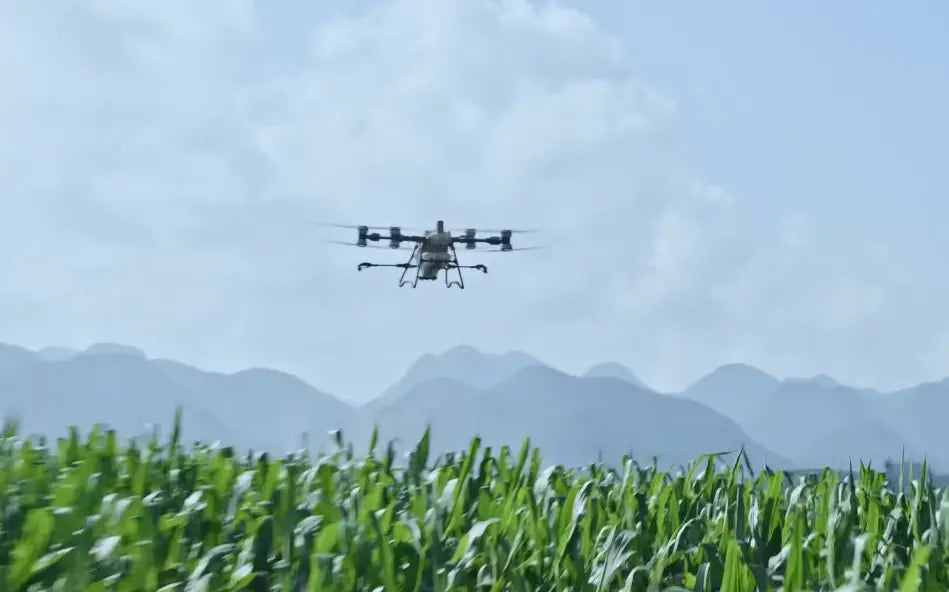

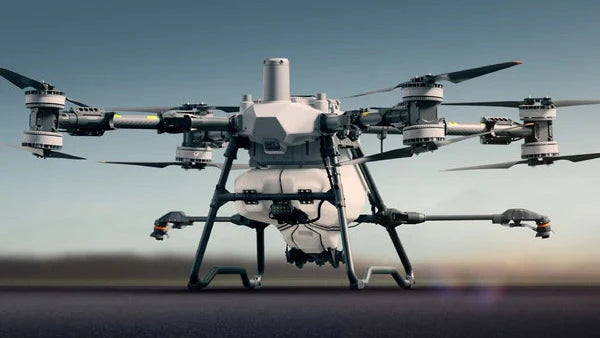

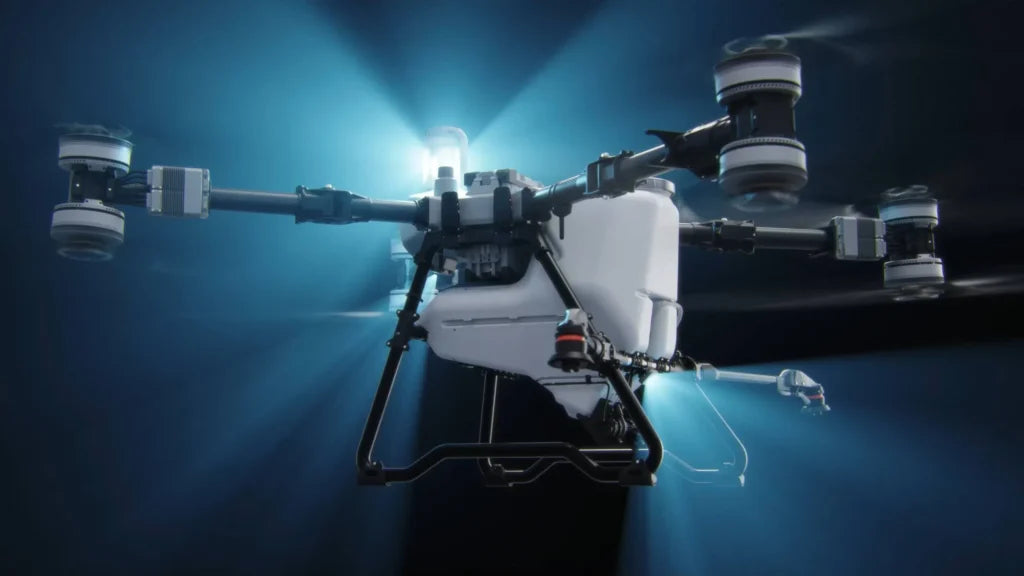

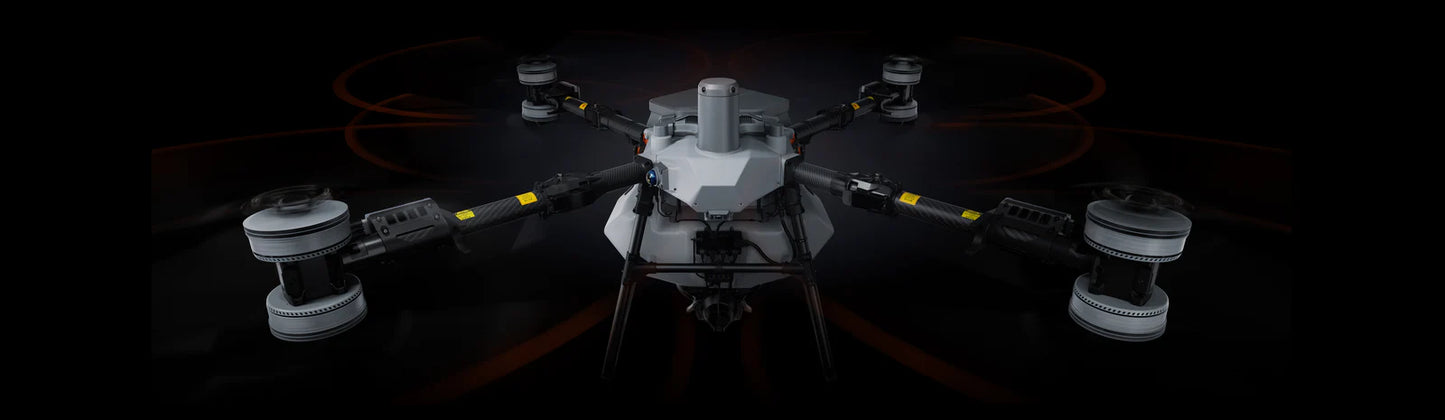

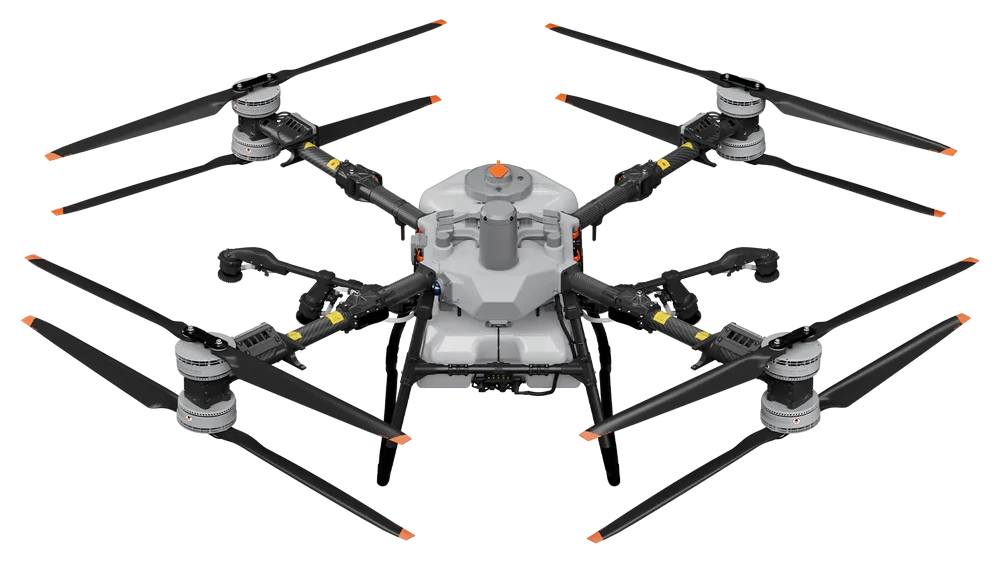

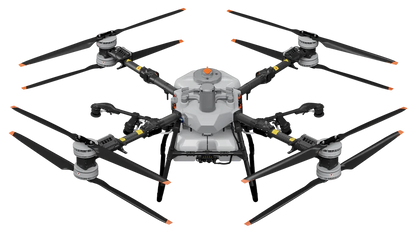

DJI Agras T100

• 100+ acres per flight hour- 26.4 gallons (100 L) spray tank

• 39.6 gallons (150 L) spreader tank

• 12-megapixel adjustable camera

• Up to 42 feet swath width

• Dual centrifugal atomizing sprinklers

• Coaxial dual rotors with 62-inch carbon fiber propellers

--

Prepare for a new era in precision agriculture with the DJI Agras T100. Engineered for large-scale farms, crop dusting businesses, and agronomists demanding top-tier efficiency and reliability, this flagship drone delivers exceptional performance and versatility.

Robust Design, Exceptional Performance:
The DJI Agras T100 weighs approximately 75 kg empty (spraying configuration with 2 nozzles) and supports a maximum takeoff weight of up to 177 kg when fully loaded. Its large 62-inch carbon fiber propellers and coaxial dual-rotor design provide superior thrust, stability, and energy efficiency. Modular payloads include spraying, spreading, and lifting systems with payload capacities up to 100 kg.

Dimensions and Maneuverability:
The drone's diagonal wheelbase measures 2330 mm (91.7 inches), with overall unfolded dimensions of 3220 × 3224 × 975 mm (126.8 × 126.9 × 38.4 inches). When folded for transport or storage, it reduces to 1105 × 1265 × 975 mm (43.5 × 49.8 × 38.4 inches).

Precision at Its Core:
With RTK-enabled GPS positioning, the T100 achieves a hovering accuracy of ±10 cm horizontally and vertically. Without RTK, accuracy remains strong at ±0.6 m horizontal and ±0.3 m vertical. The drone offers a maximum flight radius of 2 km, ideal for large field coverage.

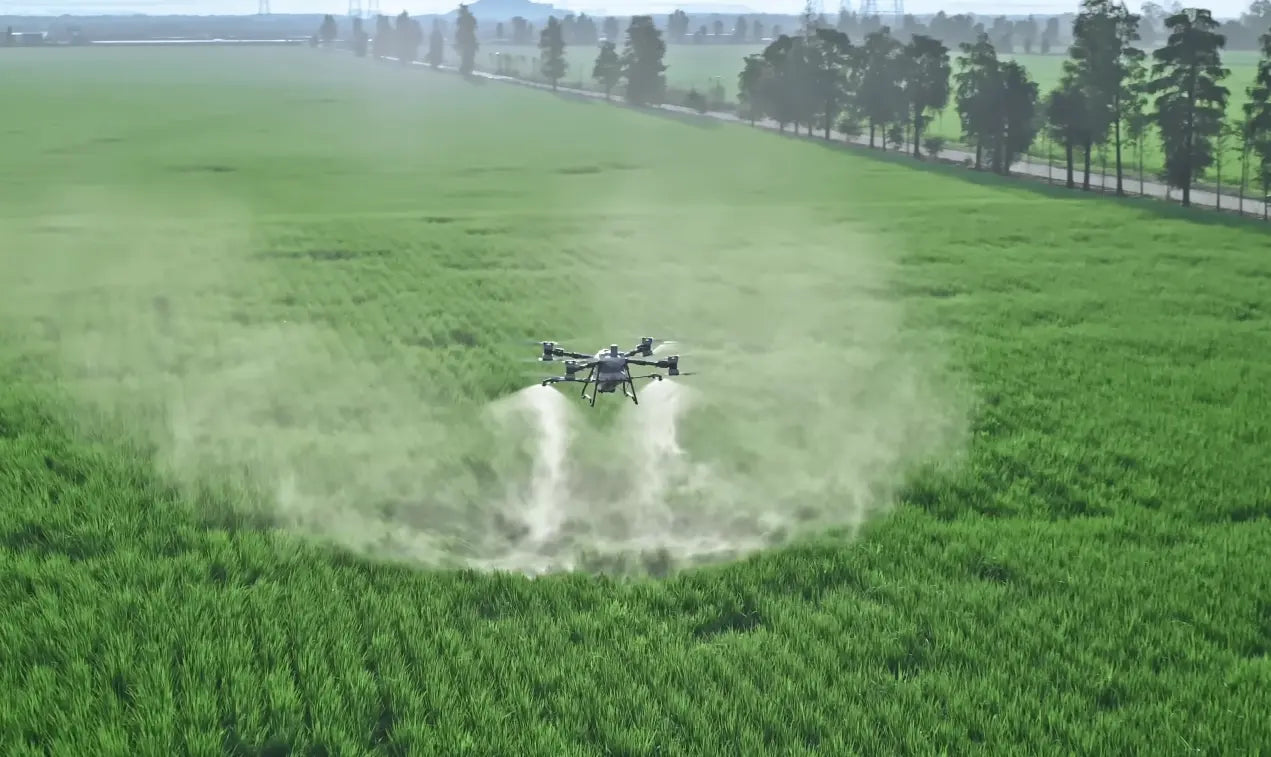

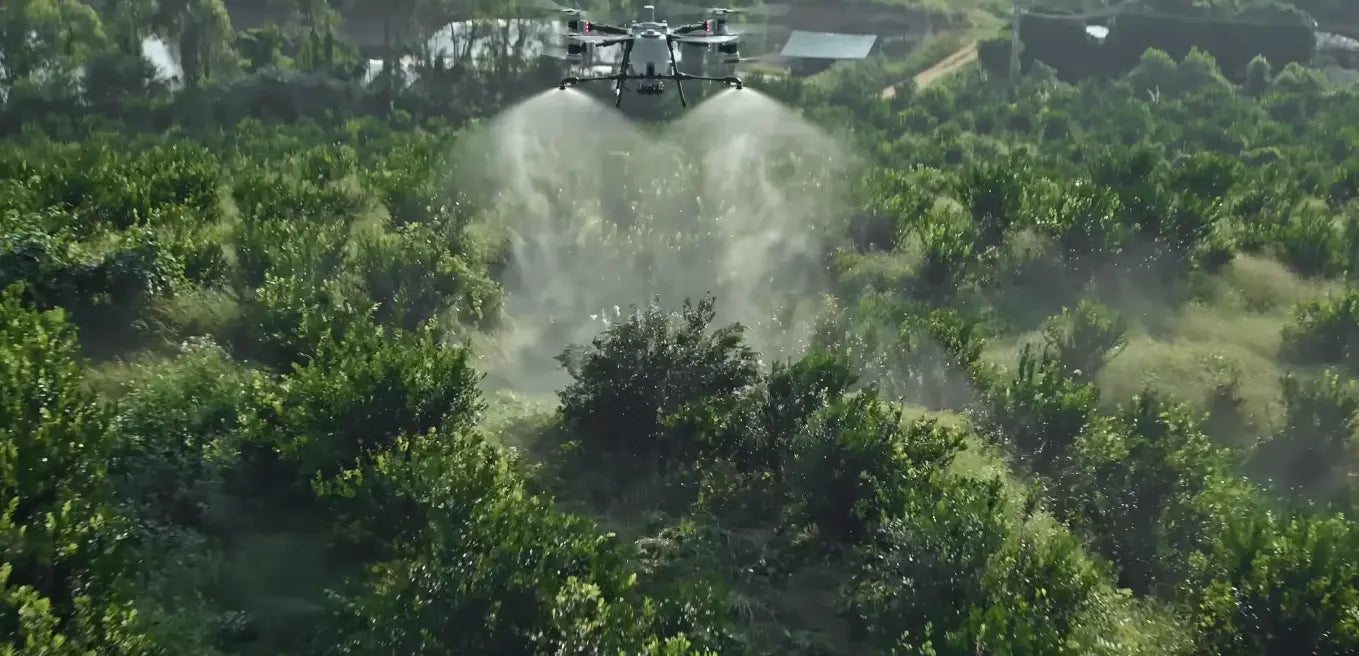

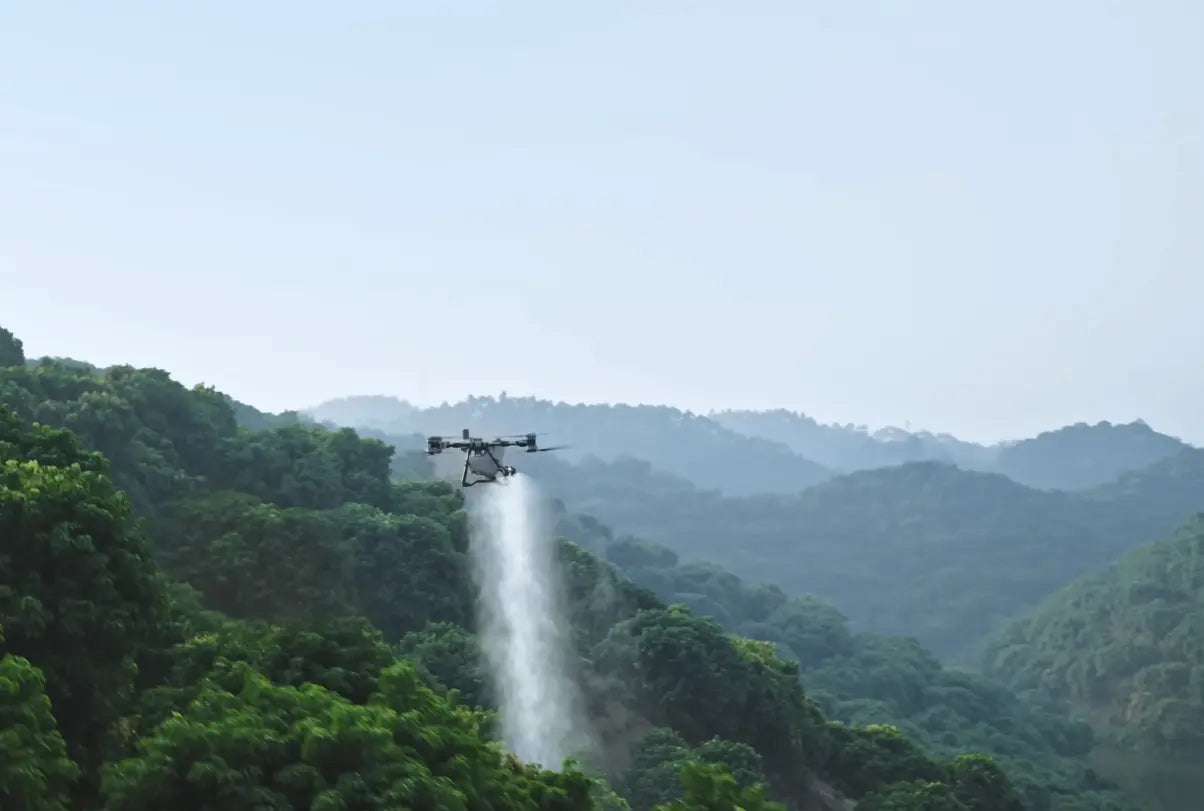

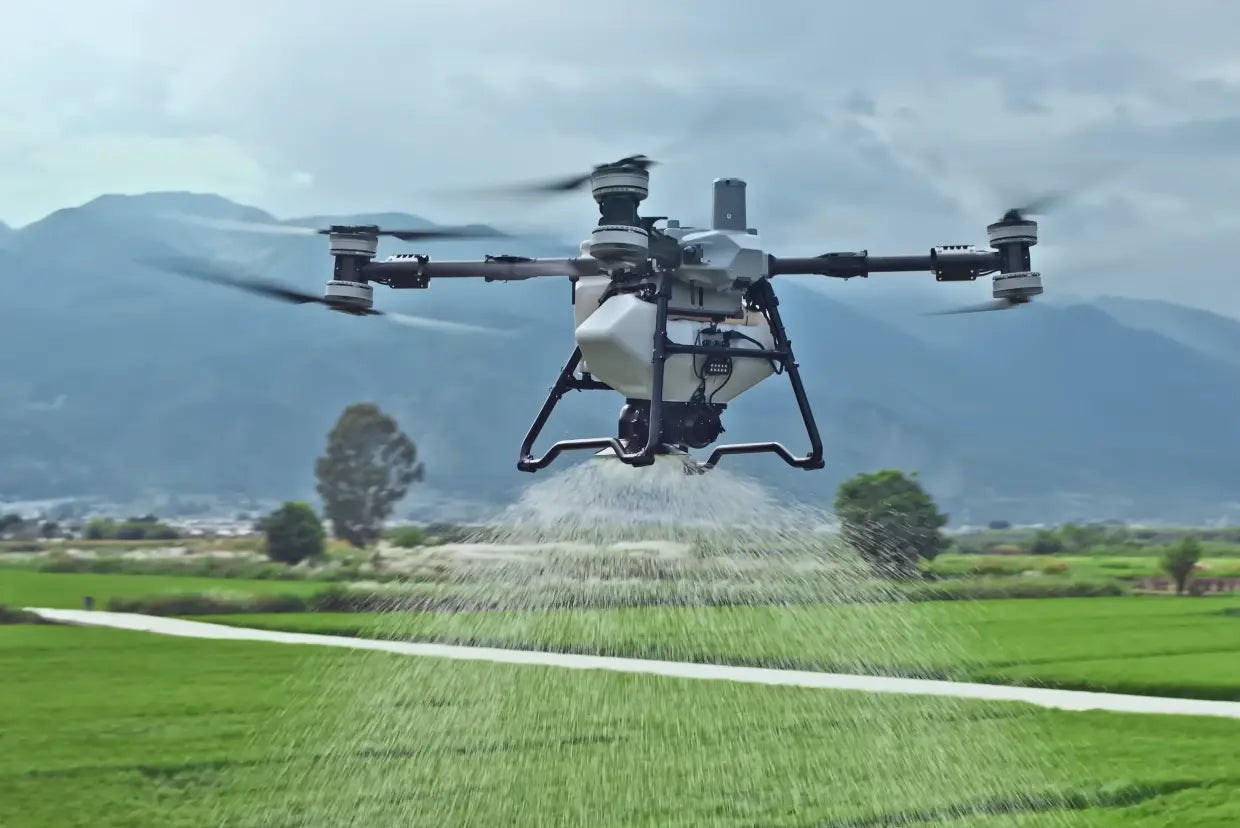

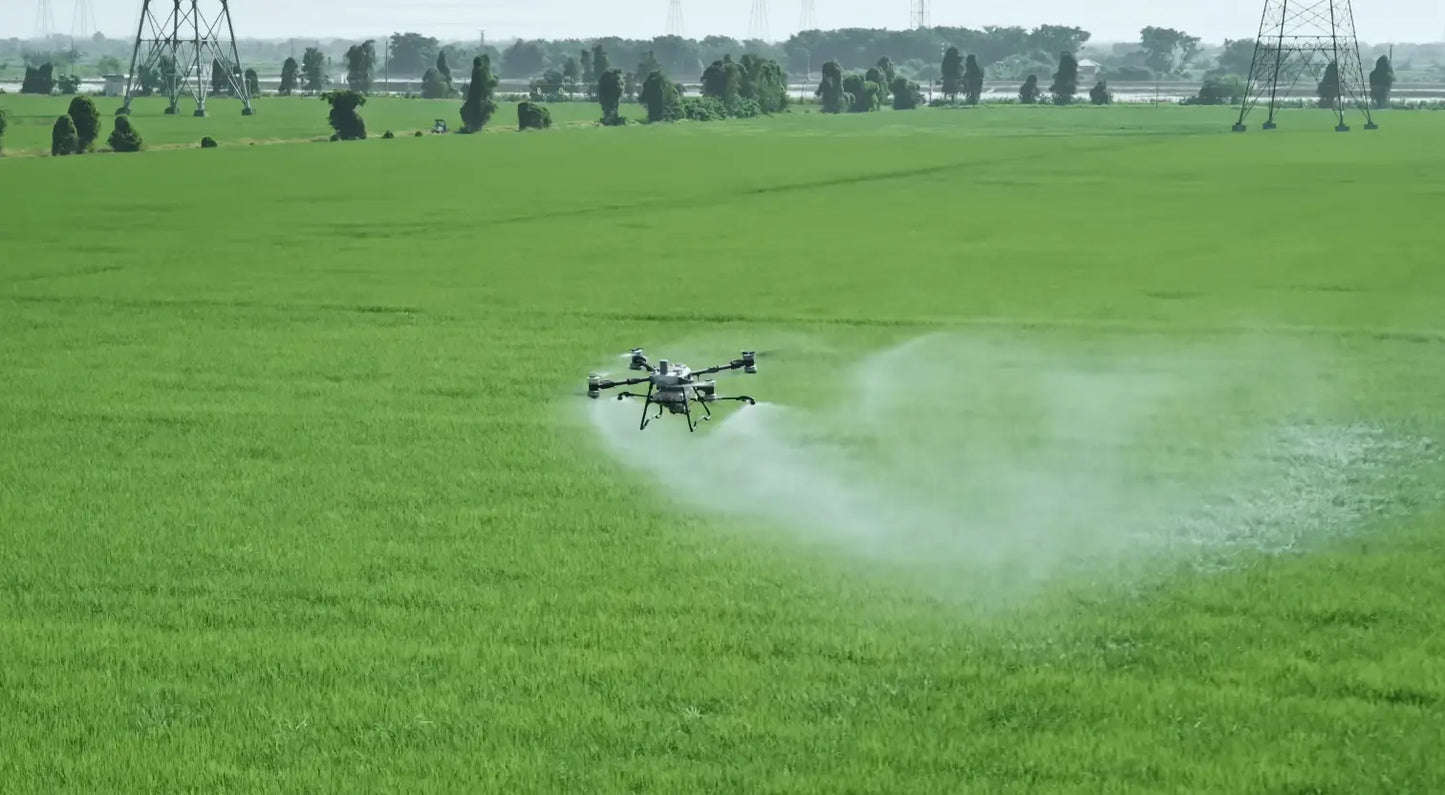

Spraying System with Unmatched Range:

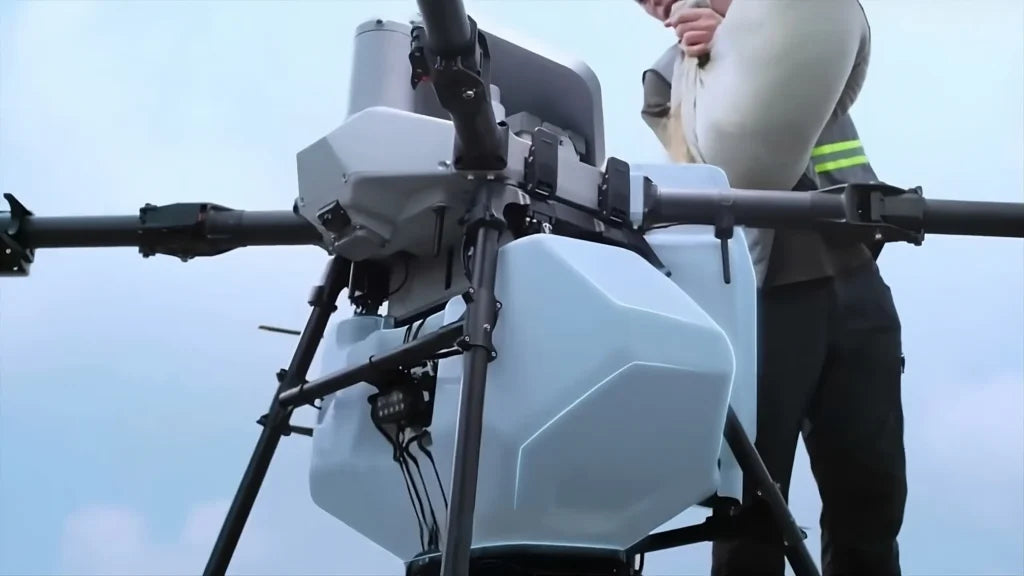

The 100 L (26.4 gallon) HDPE spray tank feeds dual centrifugal LX07550SX sprinklers (standard 2 nozzles; optional 4 nozzles) delivering droplets sized 50–500 μm. Spray width is adjustable from 5–13 meters (up to 42 feet), with pumps delivering up to 40 L/min flow rate. The system ensures consistent and efficient crop coverage.

Spreading System:
Equipped with a 150 L (39.6 gallons) centrifugal disc spreader, the T100 efficiently distributes granular materials at a maximum discharge rate of 400 kg/min. Broadcast width ranges from 3–10 meters, adjustable for different crop needs. Compatible with granule sizes from 0.5 mm to 10 mm using interchangeable augers.

Lifting System:
The drone carries payloads up to 100 kg using a 10 m cable for agricultural lifting tasks, with an emergency cable fuse disconnection for safety. Dual-battery lifting system supports up to 80 kg payloads.

Advanced Safety and Control:

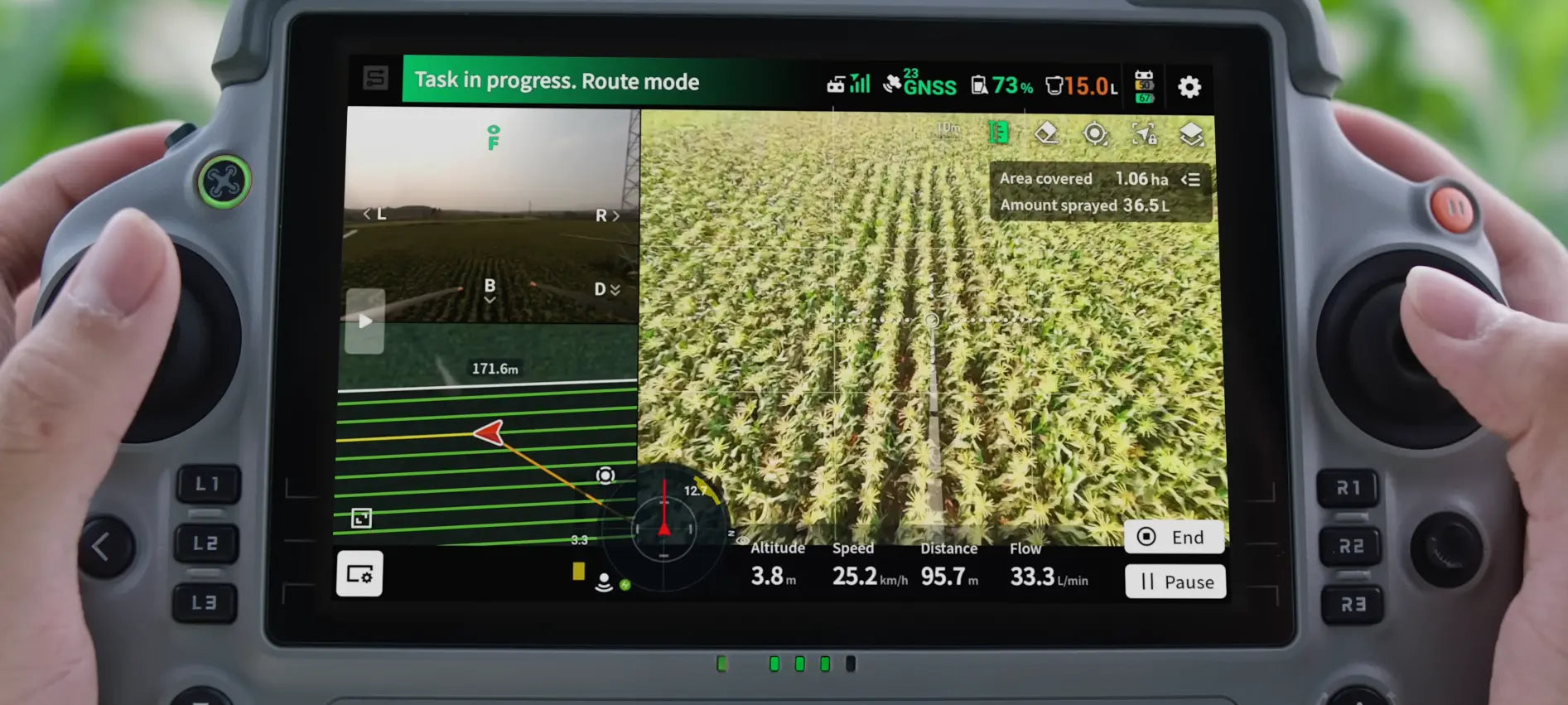

Obstacle avoidance integrates phased array millimeter-wave radar, laser radar, and a 360° quad-vision system, providing 60 m range detection and safe operation up to 13.8 m/s speeds. Operating temperature range is 0–40 °C. The TKPL 2 remote controller features a 7-inch 1920×1200 high-brightness touchscreen for clear, intuitive control in all lighting conditions.

Power and Efficiency:
Powered by intelligent DB2160 flight batteries (41,000 mAh, 14.7 kg) with quick 8–9 minute recharge times using the D14000iE inverter generator and C12000 smart charger. Flight times vary but allow for extended, high-efficiency fieldwork without interruption.

The DJI Agras T100 sets a new standard for large-scale agricultural drone operations, offering enormous capacity, precision control, and advanced safety technologies to maximize productivity and crop health management.



Product Specifications

Spray System

• 26.4-gallon (100 L) HDPE liquid spray tank designed to empty quickly

• Operating payload: 100 kg

• Dual centrifugal atomizing sprinklers (Model: LX07550SX standard 2 nozzles, optional 4 nozzles LX09550SX mist nozzles)

• Nozzle distance: 1834 mm (distance between outermost nozzles)

• Droplet size range: 50–500 μm

• Effective spray width: 5–13 m (16.4–42.7 ft)

• Twin magnetic drive impeller pumps with max flow rates: 30 L/min (2 nozzles), 40 L/min (4 nozzles)

• Live level meter and onboard scales for precise tank volume management

Spreader System

• 39.6-gallon (150 L) spreader tank designed for 100 kg maximum load

• Centrifugal disc spreading mechanism providing 3–10 m broadcast width (measured at 3 m height, 1100 rpm disc speed)

• Maximum discharge rate: up to 400 kg/min of granular material

• Screw feeder discharge system for jam-free high torque spreading

• Compatible granule diameters for multiple augers: 0.5–10 mm (fertilizers, seeds, feed)

Efficiency & Operations

• Terrain following capability up to 50° slope angle for spraying/spreading missions

• 12-megapixel adjustable camera for clear aerial imaging and mapping

• Multi-radar and vision system: 2 binocular vision sets, 2 omnidirectional millimeter wave radars

• Complete field mapping and precision coverage

• Coverage capacity: over 100 acres per hour at approximately 2 GPA (gallons per acre) spraying rate

• Flight speed up to 45 ft/sec (~13.8 m/s) with swath width up to 42 ft (13 m)

Aircraft Specifications

• Weight for spraying: 75 kg standard (2 nozzles), 77 kg optional (4 nozzles)

• Max takeoff weight for spraying: 175 kg standard, 177 kg optional

• Weight for spreading: 75 kg

• Weight for lifting: 65 kg standard lifting system, 90 kg dual-battery lifting system

• Max takeoff weight for lifting: 165 kg standard, 170 kg dual-battery lifting system

• Dimensions (arms and propellers unfolded): 3220 × 3224 × 975 mm

• Dimensions (arms unfolded, props folded): 1820 × 1840 × 975 mm

• Dimensions (arms and props folded): 1105 × 1265 × 975 mm

• Diagonal wheelbase: 2330 mm

Flight and Control

• Hovering accuracy with strong GNSS signal:

• ±10 cm horizontal and vertical with RTK enabled

• ±0.6 m horizontal and ±0.3 m vertical without RTK

• Maximum configurable flight radius: 2 km

• Max wind resistance: <6 m/s

• Operating temperature range: 0 °C to 40 °C

• Remote controller: TKPL 2 model with 7-inch 1920×1200 LCD touchscreen, 1400 cd/m² brightness

• Internal controller battery runtime: 3.8 hours

• Fast USB-C charging, full charge in approx 2 hours

Safety and Sensors

• Advanced Safety System includes millimeter-wave radar, laser radar, full 360° quad vision system

• Obstacle avoidance with effective sensing range up to 60 m

• Safe obstacle avoidance speed up to 13.8 m/s

• Multi-directional radars covering horizontal 360° and vertical up to 272° (laser radar FOV)

• Intelligent terrain-following aids safe operation across uneven terrain

Power System

• Flight battery: DB2160 Intelligent, 41,000 mAh, 52 V, weighing approx 14.7 kg

• Recharge time: 8–9 minutes from 30% to 95% using DJI D14000iE inverter generator and C12000 smart charger

• Generator fuel capacity: 30 L, unleaded gasoline
