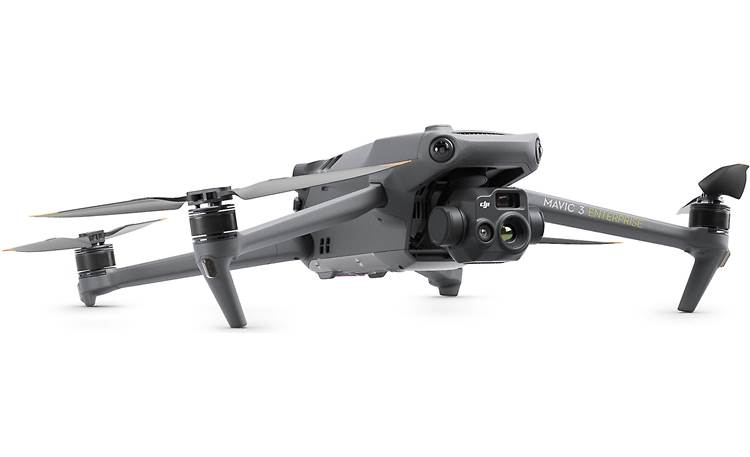

DJI Mavic 3 Thermal

A lightweight, hard-working thermal drone

With the Mavic 3 Enterprise lineup, DJI started from their most popular drone platform, the Mavic 3, and updated it for commercial applications. The new Mavic 3 Thermal Enterprise offers a cost-efficient solution for a range of industry needs, from industrial inspection to surveying and mapping.

This drone flies fast and smooth while it captures detailed visual and thermal footage with its professional-grade tri-camera system. And it can be deployed quickly, helping you complete jobs efficiently to save your team time and labor.

Twin 4K cameras

The Mavic 3T features a pair of 4K visual cameras for added flexibility. The primary wide camera has a 48-megapixel, 1/2" CMOS sensor that gives you greater resolution and clarity. And its wide field of view lets you capture more in every frame.

The secondary telephoto camera has a 12-megapixel, 1/2" CMOS sensor and supports up to 56X hybrid zoom. This helps you scout out the terrain and zoom in to capture detailed footage from a distance. This is especially helpful for industrial inspections, where you need your drone a safe distance away from power lines and other obstacles.

See in visual, thermal, or both

The Mavic 3T supports 640 x 512 thermal resolution with highly accurate spot and area temperature measurement. You can customize your view with alerts for high temperatures, isotherms, and several different color palettes like white hot, iron red, and medical. This allows the drone to aid emergency response applications like firefighting and search and rescue.

You can switch between each camera on the fly, letting you choose the best view in real-time as your needs change during an operation. Even better, the 3T supports a split-screen view of your thermal and visual feeds at the same time. This lets you make quick comparisons and simultaneously zoom both feeds up to 28X for a closer look.

Smart flight protects your investment

This drone's advanced obstacle detection means flyers can keep themselves and their drone at a safe distance when performing complex or otherwise dangerous operations. The drone's Advanced RTH (Return to Home) feature can even automatically plot a safe course back to you at the press of a button or if the signal is lost.

Strong transmission, stable controls

Getting a fuzzy feed or losing video connection entirely mid-flight can scuttle a mission and needlessly set your team back. Luckily, the Mavic 3T uses Enterprise OcuSync 3.0 (O3), DJI's impressive transmission system. This wireless technology automatically switches between two different bands (2.4 GHz and 5.8 GHz) to resist pesky interference and provide reliable high-definition video transmission.

OcuSync's low-latency transmission gives you high-definition video feeds at 30 frames per second, and it keeps your control of the drone sharp and responsive. With a range up to 9.3 miles, you also have some serious flexibility. You team can confidently fly the drone on missions over mountains, ravines, and other obstacles — all while their feet are placed safely on terra firma.

Comes with the RC Pro Enterprise controller, an extra pair of propellers, and protective case.

Intuitive controls and software

The included RC Pro Enterprise remote controller comes with DJI Pilot 2 built-in, DJI's updated and improved flight interface. Flight and navigation details are displayed clearly on the controller's bright, 5.5-inch touchscreen. The Mavic 3T is also compatible with FlightHub 2. This project management software allows for simultaneous collaboration between multiple teams working on the same project with live mission streaming. Users can even add live annotations for the drone operator to respond to for efficient coordination.

Third-party support

With an open-source SDK (software developer kit) you can develop custom apps and benefit from the work put together by the wider drone community. This means you can create or take advantage of third-party tools and services, helping you expand and refine your drone's capabilities. Support includes the hardware of the drone itself, but also payloads and cloud platforms.

Top-notch security

You can opt to store your data locally on the drone or an SD card. Both encrypt your data with password protection, and that password isn't stored anywhere on DJI's end. This means if the drone crashes or is lost, no one will be able to retrieve the data without your password. If need be, you can also erase all of your data on the drone with a single tap in the DJI Pilot 2 interface.

DJI also protects live video transmission with AES encryption. You can opt in to store data on DJI's cloud, too, which uses multilayered systems including DDos, WAF, Gateway, and RASP protection. Sensitive information like personal or location details receive additional AES-256-CBC encryption.

Product highlights:

• quadcopter with 20-megapixel wide camera, 12-megapixel telephoto camera, thermal camera, smart controller, case, and rechargeable intelligent flight battery
  • simultaneous split-screen visual/thermal mode lets you zoom in up to 28X for detailed comparisons
• foldable, lightweight design makes it easy to carry to your launch destination
• 3-axis motorized gimbal
• low-noise flight technology for a quieter flight
• GPS/Galileo/BeiDou positioning allows super-accurate navigation
• APAS 5.0 (Advanced Pilot Assistant Systems) help the drone safely navigate complex environments and high speeds
  • omnidirectional obstacle sensing helps you fly safely
• Advanced RTH (Return to Home) can be activated by the user or automatically during signal loss
  • automatically avoids obstacles when plotting a return route
• service ceiling: 4921 feet
• flies up to 46.9 mph (Sport mode)
• resists winds up to 26.8 mph
• flight time: 45 minutes

Wide camera:

• 48-megapixel 1/2" CMOS sensor
• captures 4K video HD @ 30 fps
• 24mm equivalent focal length
• aperture: f/2.8
• wide 84° FOV (field of view)
• ISO: 100-25600
• electronic shutter: 8-1/8000s

Telephoto camera:

• 12-megapixel 1/2" CMOS sensor
• 162mm equivalent focal length
• up to 56X hybrid zoom (8X digital zoom)
• 15° FOV (field of view)
• aperture: f/4.4

Thermal camera:

• Uncooled VOx Microbolometer imager
• thermal resolution: 640 x 512 @ 30 fps
• 40mm equivalent focal length
• DFOV (Diagonal Field of View): 61°
• aperture: f/1.0
• digital zoom: 28X
• supports spot meter and area temperature measurement
• thermal accuracy: ±3.6°F or ±2% (use larger value)
• temperature measurement range: -4° to 302°F (High Gain), 32° to 932°F (Low Gain)
• supports temperature alerts, customizable color palettes, and isotherms

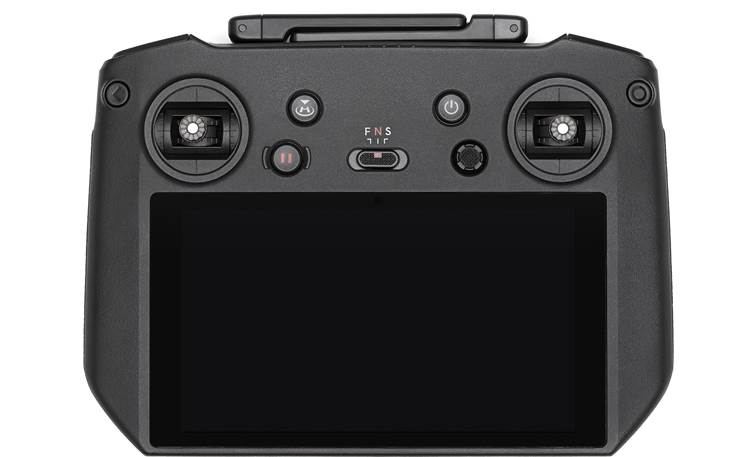

DJI RC Pro Enterprise remote controller:

• built-in 5.5-inch HD touchscreen
  • 1,000-nit brightness for a clear live video feed
• ergonomic design stays comfortable during long flights
• DJI Ocusync 3.0 (O3) Enterprise Transmission with four built-in antennas
  • sends 1080p live video @ 30 fps to the controller from up to 9.3 miles away
  • supports both 2.4 GHz and 5.8 GHz bands with automatic switching to reduce interference
• shoot, edit, and share footage with the free, downloadable DJI Pilot 2 app for iOS® and Android™ devices
• DJI FlightHub 2 drone management app for ground-to-cloud mission management with support for live annotations
• DJI Terra mapping software for mission planning and 2D/3D model processing
• records to optional microSD memory card (2TB max., Speed Class 10 or UHS-1 rating required)
• 64GB internal storage
• built-in Wi-Fi® and Bluetooth®
• HDMI mini port
• battery life: 3 hours
• charging time: 1.5 hours (with USB-C power adapter, included)
• operating temperature: 14° to 104°F
• charging temperature: 41° to 104°F
• 5-7/16"W x 1-7/8"H x 7-1/4"D (with controller sticks and unfolded antennas), 8-1/16"W x 2-3/8"H x 7-1/4"D (without controller sticks and folded antennas)
• weight: 1.49 lbs.

Software and security features:

• MDSK (Mobile Software Development Kit) open-source developer ecosystem lets you download third-party software for even more options to edit and share your footage
• PDSK (Payload Software Development Kit) allows the drone to interface with third-party hardware
• DJI Cloud API lets you seamlessly integrate the drone with third-party cloud platforms
• AES-256 encryption for secure video transmission
• Local Data Mode prevents data from being sent or received over the internet, providing additional security for sensitive operations
  • clear all device data with a single tap

Included accessories:

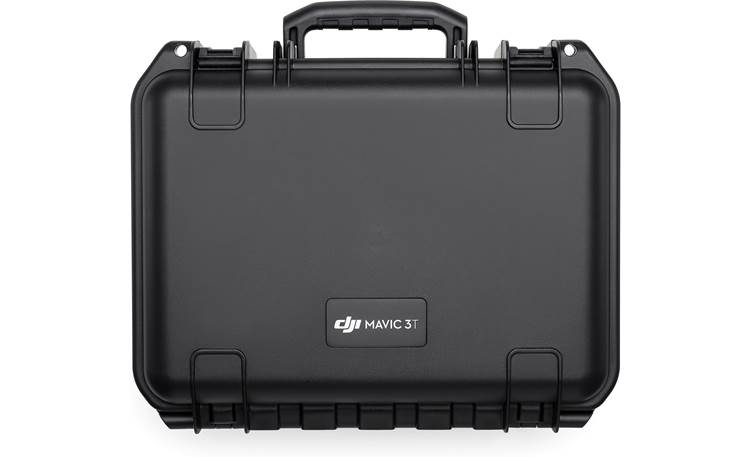

• carrying case
• 64GB microSD card
• pair of spare propellers

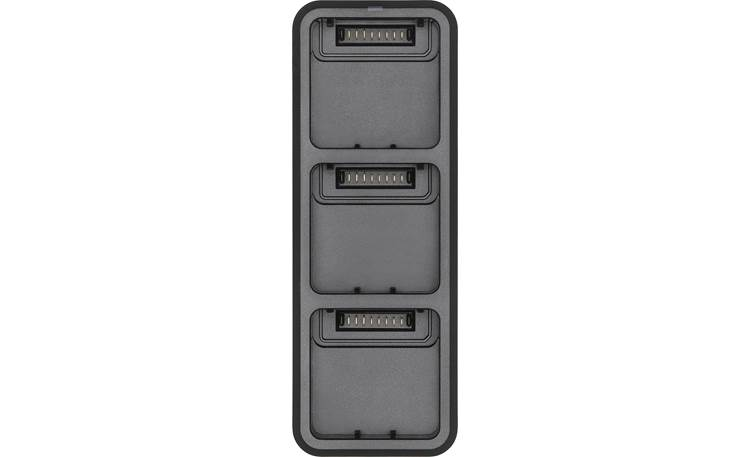

• charging hub charges up to three batteries in sequence
• USB-C cable and power adapter
• USB-A to USB-C and USB-C to USB-C cables

General info:

• built-in beacon
• operating temperature: 14° to 104°F
• charging temperature: 41° to 104°F
• dimensions: 3-13/16"W x 3-9/16"H x 8-3/4"D (folded, without propellers), 11-3/16"W x 4-1/4"H x 13-11/16"D (unfolded, without propellers)
• weight: 2.02 lbs.
• warranty: 1 year
• Note: The FAA offers the most up-to-date information on safety tips, rules, and regulations for responsible drone use. Many drones need to be registered, and state and/or local laws may restrict their use in some areas.
